Adjustable solid commodity measuring device.

A single-chassis measuring utensil for dry goods, using slider-driven adjustment, density-specific scale markings, and a spring-detent lock to hold capacity under scooping force.

Use 3D model Watch mechanism

Dry goods only

Built for rice, flour, lentils, peas, and other solid commodities.

The design intentionally avoids liquid-measure sealing problems. It focuses on stable particulate isolation, repeatable weight conversion, and a scraper boundary that keeps powder and grains inside the active chamber.

Dynamic capacity Slider motion shifts the internal boundary to size the primary cup chamber.
Zero-slip detention A spring-loaded lock pin secures the selected measurement position.
Commodity scales Parallel tracks compensate for different mass-to-volume densities.
Toolless cleaning The brief calls for latch-based breakdown and practical cleaning access.

Animated 3D design

The attached video shows the intended product motion and form language.

Outer vessel Transparent cup stabilizes the dry material while exposing the internal movement.
Thumb actuator The handle slider selects a measurement and visually aligns to the scale.
Moving boundary The adjustable wall/base changes the usable volume for repeatable measures.

Schematic translation

Key details from the technical portfolio.

End product visual design rendering from the PDF

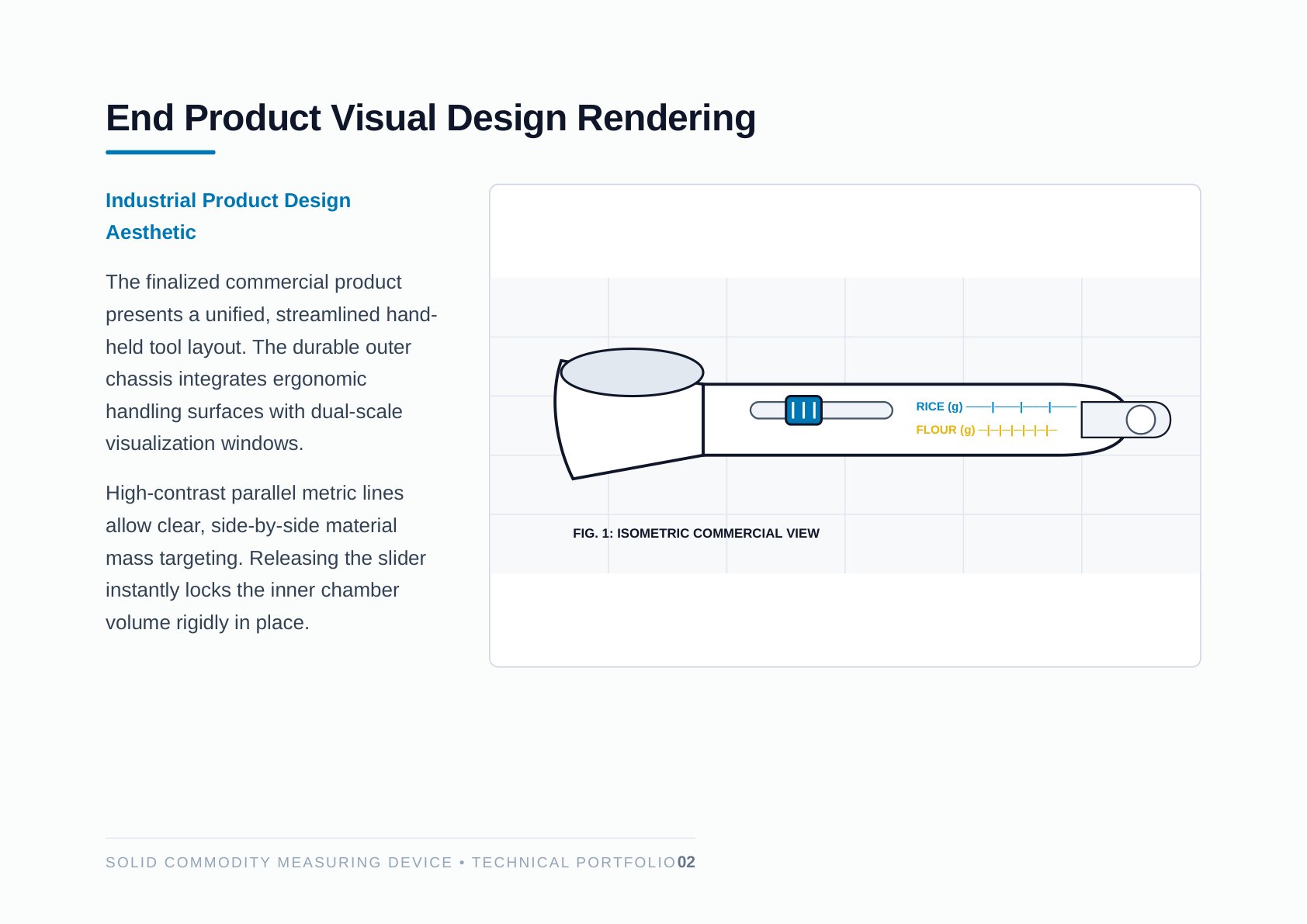

Commercial view with integrated handle scales for rice and flour weight targeting.
Cross-sectional internal schematic from the PDF

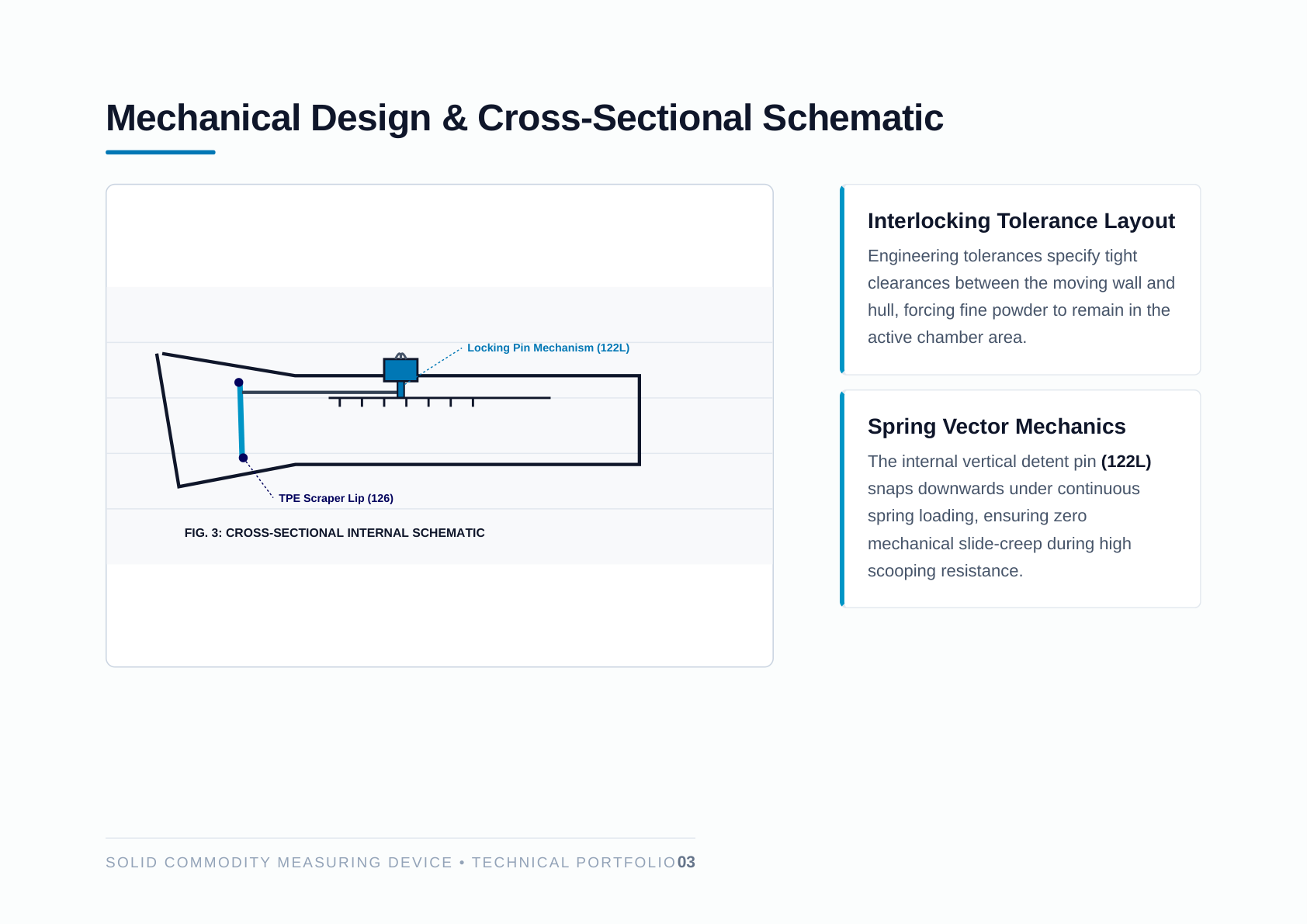

Cross-section calling out the locking pin mechanism and TPE scraper lip.

4-step adjustment cycle

How the actuator locks, slides, wipes, and secures the chamber.

Patent drawing component index

Numbered parts and engineering function.

Ref. Component Function
112 Central handle structural chassis Core ergonomic frame with integrated horizontal guideway rails.
116 / 118 Parallel commodity weight scales Laser-etched indicator tracks for density compensation curves.
120 Solid commodity outer cup Main vessel receiving and stabilizing dry raw materials.
122 / 122L Thumb slider actuator and lock pin Spring-driven detention to lock capacity during use.
124a / 124b Internal moving boundary walls Sliding partition boundaries that scale interior capacity.
126 Perimeter TPE scraper edge seal Flexible lip that clears particles and fine starch powder from the track.

Feasibility assessment

Why the product strategy is viable.

Reduced seal complexity Dry scrapers focus on particle exclusion, avoiding liquid-tight hermetic sealing.
Low production friction Injection-molded PP, TPE, and guideway parts support efficient production.
High manufacturing margins The brief targets a compact utility assembly with minimal major molded components.
Clear consumer value One utensil can replace several measuring cups and spoons for dry ingredients.
